Mass 85 g
Internal volume 5 cm3
Enclosure rating IP40
Measurement range (APG100-XM) Atmosphere to 10-3 mbar
Measurement range (APG100-XLC) Atmosphere to 10-4 mbar
Accuracy (APG100-XM) Typically +/- 15% at <100 mbar
Accuracy (APG100-XLC) Typically +/- 15% at <10 mbar
Maximum over-pressure 10 bar absolute
Operating temp range 5o to 60o C
Storage temp range -30o to 70 oC
Bake-out with no electronics 150 oC
Humidity 80% RH up to 31 oC decreasing linearly
to 50% RH at 40 oC and above
Maximum altitude 3000 m
Filament temperature 100 oC above ambient
Electrical supply voltage 15 to 30 V d.c. nominal
13.5 V d.c. minimum
32 V d.c maximum
Power consumption 1 W
Output signal 0 to 10 V d.c. nominal
Set-point – open collector transistor
  Rating 30 V d.c. 100 mA
  Range of set-point 1.8 to 9.2 V dc
  Fixed hysteresis 500 mV (1/2 decade)
  Level setting resolution 6 mV

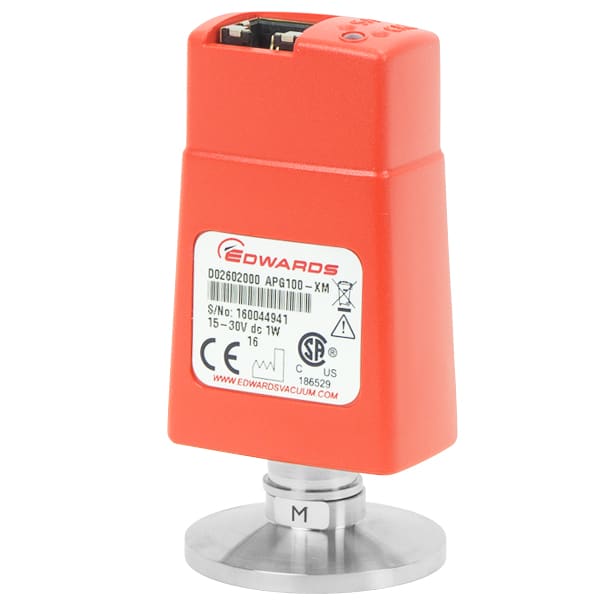

APG100-XM Active Pirani Vacuum Gauge NW25

APG100-XM Active Pirani Vacuum Gauge NW25
