| Active gauge compatibility | |
| Standard | APG100, APG-L, APG-MP, APG-M, APGX-H, APGX-L, WRG |
| Enhanced | Up to two gauges from the standard version plus AIM-X, AIM-S & ASG |

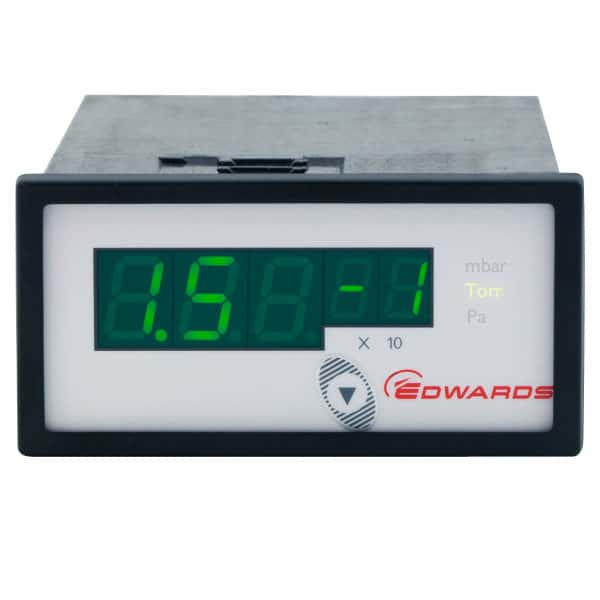

| Display | High brightness green LED display (0.47 inch high) |
| Units – mbar/Torr/Pa/Volts | |
| Electrical supply | 100 to 240V AC 47 to 63 Hz |
| Dimensional Data | |
| Panel cut-out | 92 + 0.8 x 45 + 0.6 mm (3.62inch x 1.77 inch) to DIN43700 |
| Panel thickness | 1.5mm (0.06 inch) Min |
| Weight | 0.33Kg |
| Operating and storage data | |
| Operating temperature | +0 to +40°C |
| Storage temperature | -30 to +70°C |
| Max ambient operating humidity | 90% RH non condensing at 40°C |
| Standards | |
| Electrical safety | BS EN 61010-1 |
| Electrical noise immunity | BS EN 61326 (Industrial location, class B emissions) |
| Flame retardant case materials | UL94 V1 |
| Enclosure rating | IP40 |
| Enhanced features | |
| Two analogue output | 0-10V d.c. |
| Two set-point relays, volt free single pole change-over | 1A at 48V d.c. / 2A at 24V d.c. |
| Serial output | RS232 |
